IoT Smart Garden Setup with Nano RP2040 Connect Circuit Diagram Then, go to the 'Dashboard' and create a new dashboard, then enter to the dashboard and add 4 blocks, using the plus sign at the right of the page: 1. Add a Line Chart block, then choose SoilMoisture feed, determine that the minimum value is 0 and the maximum is 1100.

With the right combination of smart gardening tools, you can optimize energy use in your garden, saving water, power, and money. Your garden will grow better. Smart gardening devices know how to optimize your garden, ensuring your plants have just the right balance of nutrients, light, water, and more to grow in the perfect way.

Building A Smart Garden System With Arduino Circuit Diagram

This instructable is a guide for setting up an automated gardening system using an arduino and other cheap electronic parts. It allows sustainable gardening by using sensors to determine soil moisture, as well as a webscraper to determine future weather. It uses this information to save water by only using the requisite amount. arduino. 1 2 #include < SFE_BMP180. h > 3 #include < Wire. h > 4 SFE_BMP180 pressure; 5 #define ALTITUDE 88.0 // 6 7 //relays 8 #define pinRelayHeater 2 9 #define pinRelayIrrigation 3 10 #define pinRelayFan 4 11 12 //analog humidity sensor 13 #define pinHumidity A0 14 15 // Values 16 #define heaterThreshold 9 17 #define fanThreshold 30 18 #

If you are new to the Arduino Cloud, please refer to the Getting Started Guide or visit the full documentation to learn more about the service. Begin by navigating to the Arduino Cloud. You will need to have a registered account with Arduino to use it. Follow the steps below to set up the Arduino Cloud. 1.

Automated greenhouse with Arduino Circuit Diagram

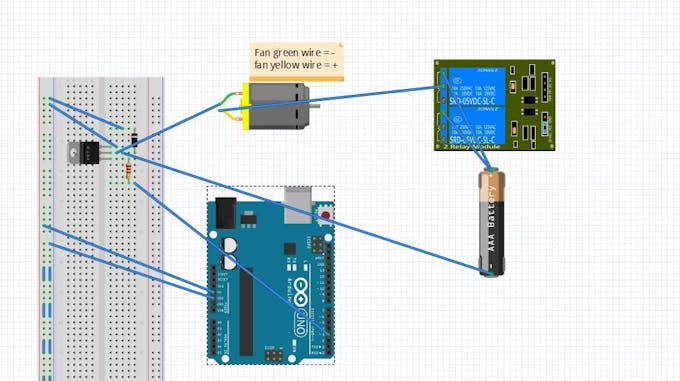

my power supply adapter the 12V 2A is enough to run the arduino, led, fan and water pump. 4) connecting the relay to the arduino . Relay Arduino. GND ----- GND. DATA ----- 13. VCC ----- 5V. Led should be connected to the NO terminal and ground in the relay
